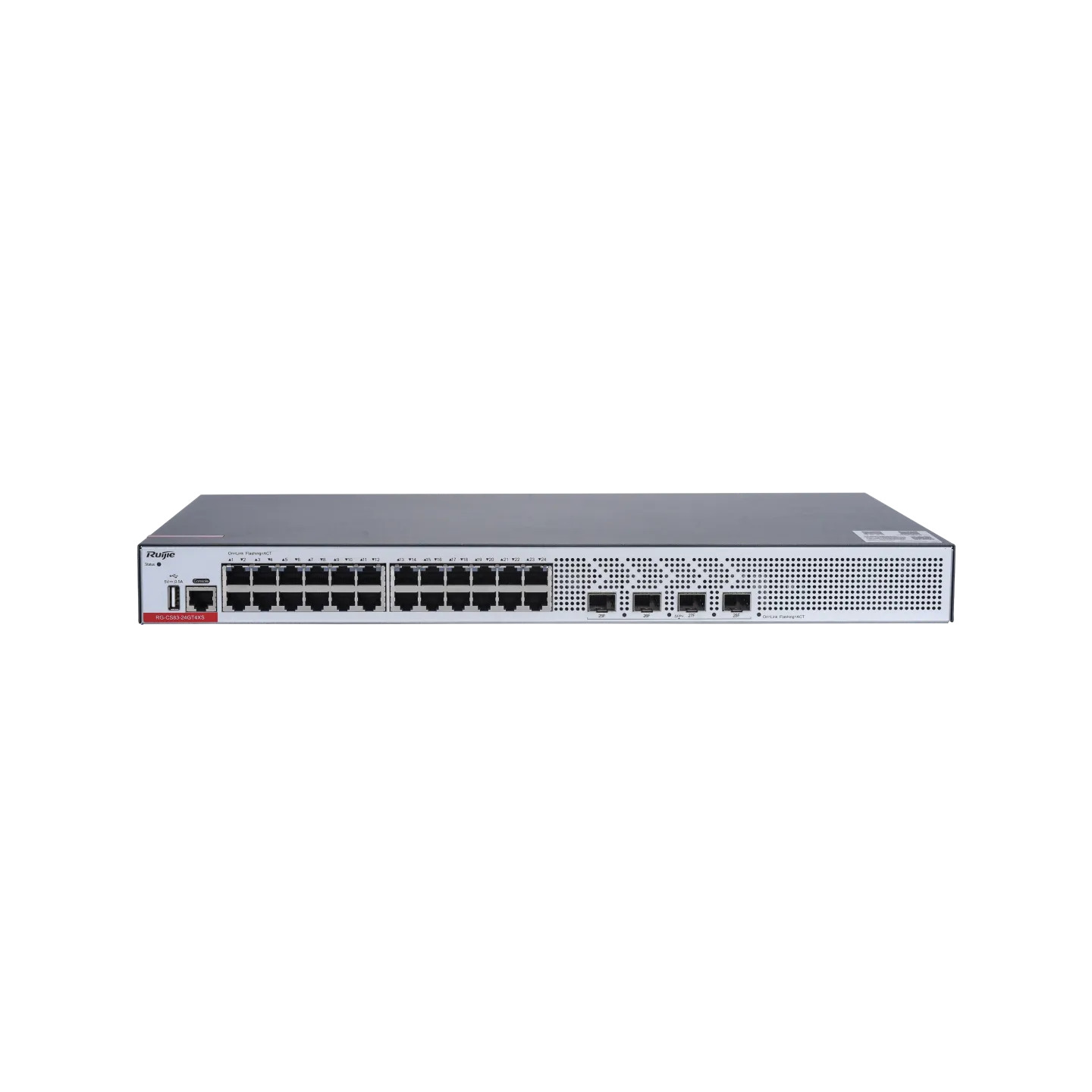

RUIJIE RG-CS83-24GT4XS 24 PORT 10/100/1000 4-PORT 1G/10G L3 YÖNETİLEBİLİR RACK MOUNT SWITCH

Port Specifications

RG-CS83-24GT4XS

Fixed service ports

24 x 10/100/1000BASE-T ports

4 x 1GE/10GE SFP+ ports

Fixed management port

1 x RJ45 console port

USB

1 x USB 2.0 port (No capacity limit, 2G/4G/8G capacity tested)

System Specifications

RG-CS83-24GT4XS

Packet forwarding rate

96 Mpps

Switching capacity

128 Gbps

CPU

Dual-core CPU, each core with the clock speed of 1.0 GHz

BootROM

16 MB (storing boot software for 1+1 boot redundancy)

Flash memory

512 MB (storing boot software for 1+1 boot redundancy)

Memory

1 GB

Switch buffer

4 MB

MAC address table size

16,000

ARP table size

4,000

Number of IPv4 unicast routes

6,000

Number of IPv4 multicast routes

1,000

Number of IPv6 unicast routes

2,000

Number of IPv6 multicast routes

750

Number of ACEs

Ingress: 1,750

Egress: 800

Number of VSU members

4

Dimensions and Weight

RG-CS83-24GT4XS

Unit dimensions (W x D x H)

442 mm x 220 mm x 43.6mm (17.40 in. x 8.66 in. x 1.72 in.)

Shipping dimensions (W x D x H)

540 mm x 338 mm x 154 mm (21.26 in. x 13.31 in. x 6.06 in.)

Rack height

1 RU

Unit weight

3.1 kg (6.83 lbs)

Shipping weight

4.10 kg

(9.04 lbs)

Power supply and Consumption

RG-CS83-24GT4XS

Power supply

1 x fixed power supply

Power input

AC input

? Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz

? Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz

? Maximum input current: 0.6 A

Maximum output power

Built-in power supply: 25 W

Maximum power consumption

25 W

Energy saving

Supported

Environment and Reliability

RG-CS83-24GT4XS

Temperature

Operating temperature: 0°C to 45°C (32°F to 113°F)

Storage temperature: –40°C to +70°C (–40°F to +158°F)

Humidity

Operating humidity: 10% to 90% RH (non-condensing)

Storage humidity: 5% to 95% RH (non-condensing)

Altitude

Operating altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.)

Storage altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.)

Mean time between failure (MTBF)

207,962 hours (about 23 years)

Fan

No fan

Heat dissipation

Fanless design, natural heat dissipation

Acoustic noise

Fanless, quiet, < 20 dB

Cable hot swapping

Cable hot swapping for all ports

Fan monitoring

Fanless design

Temperature monitoring

Supported

ESD

ESD contact/air discharge: 6 kV/8 kV

ESD susceptibility contact/air discharge: 8 kV/15 kV

Surge protection

Power port: common mode 6 kV, differential mode 6 kV

Communication port: 10 kV

Conformal coating

Conformal coating supported (key components only)

Certifications and Regulatory Compliance

RG-CS83 Series

Safety regulation

IEC 62368-1

EMC regulation

EN 300386, EN 55032 Class A, EN 55035,

EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3,

EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11

Communication standard

IEEE 802.3-2005 Ethernet standard

IEEE 803.ab, IEEE 802.3af, IEEE 802.1d, IEEE 802.1q, IEEE 802.3-2005 (802.3ae), and IEEE 802.3ba (2010) standards, supporting 802.1X authentication

RoHS

Supported
