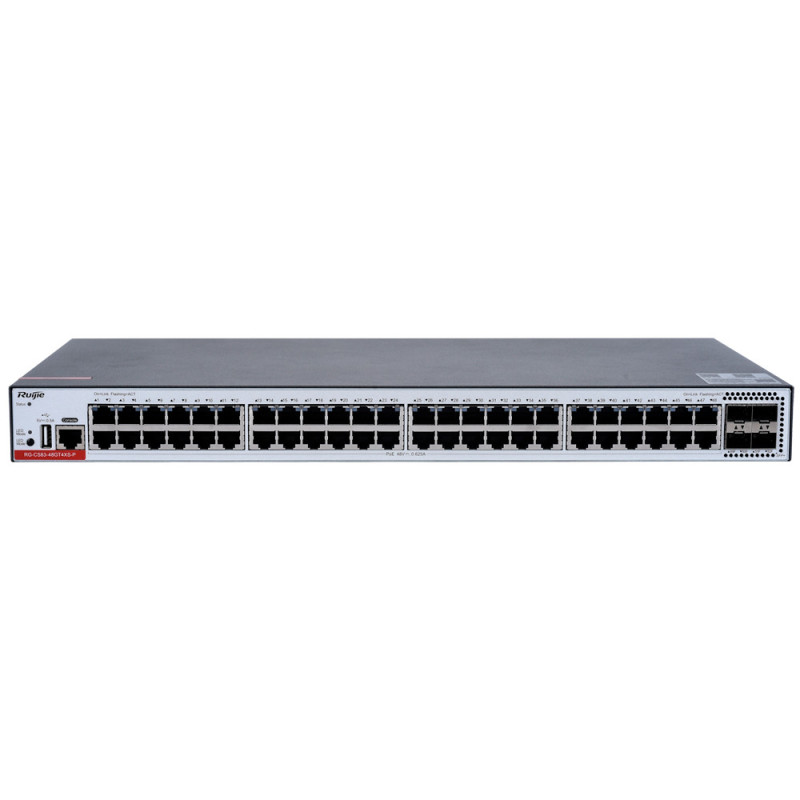

Ruijie RG-CS83-48GT4XS-P 48 Port 10/100/1000 Mbps Yönetilebilir Gigabit PoE Switch

Name: Ruijie RG-CS83-48GT4XS-P 48 Port 10/100/1000 Mbps Yönetilebilir Gigabit PoE Switch
Brand: Ruijie
SKU: SVK-RG-CS83-48GT4XS-P
Price: 88659.17 TRY
Availability: InStock
Rating: 0

Bu fiyata son 14 ürün ! Kampanya stoğu tükendiğinde ürünün fiyatı 1.820,00 USD + KDV olacaktır.
Fiyat	:	1.820,00 USD + KDV
İndirimli Fiyat (%4,3)	:	1.741,00 USD + KDV Kazancınız 79,00 USD
KDV Dahil	:	88.659,17 TL

8.821,59 TL'den başlayan taksit seçenekleri için tıklayın.

Ürüne Oy Verin

Satıcıya Danış

Ruijie RG-CS83-48GT4XS-P 48 Port 10/100/1000 Mbps Yönetilebilir Gigabit PoE Switch

Provides multiple network management methods, achieving simple and easy network maintenance.
Provides an open and programmable RGOS modular operating system. Basic functions are incorporated into the main version, and c ustom functions are released in app mode, ensuring stability of the basic functions.
Rectifies faults related to processes online in seconds, without interrupting network operation.
Supports Python that allows applications across platforms.
Upgrades and extends functions online to ensure nonstop services.

Specifications

Hardware Specifications

Port Specifications	RG-CS83-24GT4XS	RG-CS83-48GT4XS	RG-CS83-12GT4XS-P	RG-CS83-24GT4XS-P	RG-CS83-48GT4XS-P
Fixed service ports	24 x 10/100/1000BASE-T ports 4 x 1GE/10GE SFP+ ports	48 x 10/100/1000BASE-T ports 4 x 1GE/10GE SFP+ ports	12 x 10/100/1000BASE-T ports, supporting PoE/PoE+ 4 x 1GE/10GE SFP+ ports	24 x 10/100/1000BASE-T ports, supporting PoE/PoE+ 4 x 1GE/10GE SFP+ ports	48 x 10/100/1000BASE-T ports, supporting PoE/PoE+ 4 x 1GE/10GE SFP+ ports
Fixed management port	1 x RJ45 console port
USB	1 x USB 2.0 port (No capacity limit, 2G/4G/8G capacity tested)

System Specifications	RG-CS83-24GT4XS	RG-CS83-48GT4XS	RG-CS83-12GT4XS-P	RG-CS83-24GT4XS-P	RG-CS83-48GT4XS-P
Packet forwarding rate	96 Mpps	132 Mpps	78 Mpps	96 Mpps	132 Mpps
Switching capacity	128 Gbps	176 Gbps	104 Gbps	128 Gbps	176 Gbps
CPU	Dual-core CPU, each core with the clock speed of 1.0 GHz
BootROM	16 MB (storing boot software for 1+1 boot redundancy)
Flash memory	512 MB (storing boot software for 1+1 boot redundancy)
Memory	1 GB
Switch buffer	4 MB
MAC address table size	16,000
ARP table size	4,000
Number of IPv4 unicast routes	6,000
Number of IPv4 multicast routes	1,000
Number of IPv6 unicast routes	2,000
Number of IPv6 multicast routes	750
Number of ACEs	Ingress: 1,750 Egress: 800
Number of VSU members	4

Dimensions and Weight	RG-CS83-24GT4XS	RG-CS83-48GT4XS	RG-CS83-12GT4XS-P	RG-CS83-24GT4XS-P	RG-CS83-48GT4XS-P
Unit dimensions (W x D x H)	442 mm x 220 mm x 43.6mm (17.40 in. x 8.66 in. x 1.72 in.)
Shipping dimensions (W x D x H)	540 mm x 338 mm x 154 mm (21.26 in. x 13.31 in. x 6.06 in.)
Rack height	1 RU
Unit weight	3.1 kg (6.83 lbs)	3.25 kg (7.17 lbs)	3.3 kg (7.28 lbs)	3.4 kg (7.50 lbs)	4.0 kg (8.82 lbs)
Shipping weight	4.10 kg (9.04 lbs)	4.10 kg (9.04 lbs)	4.18 kg (9.22 lbs)	4.25 kg (9.37 lbs)	4.90 kg (10.80 lbs)

Power supply and Consumption	RG-CS83-24GT4XS	RG-CS83-48GT4XS
Power supply	1 x fixed power supply	1 x fixed power supply
Power input	AC input ? Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz ? Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ? Maximum input current: 0.6 A	AC input ? Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz ? Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ? Maximum input current: 1.5 A
Maximum output power	Built-in power supply: 25 W	Built-in power supply: 40 W
Maximum power consumption	25 W	40 W
Energy saving	Supported	Supported

Power supply and Consumption	RG-CS83-12GT4XS-P	RG-CS83-24GT4XS-P	RG-CS83-48GT4XS-P
Power supply	1 x fixed power supply	1 x fixed power supply	1 x fixed power supply
Power input	AC input ? Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz ? Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ? Maximum input current: 6 A	AC input ? Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz ? Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ? Maximum input current: 6 A	AC input ? Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz ? Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ? Maximum input current: 6 A
Maximum output power	Built-in power supply: 409 W	Built-in power supply: 409 W	Built-in power supply: 460 W
Maximum power consumption	35 W (non-PoE) 405 W (PoE full load)	35 W (non-PoE) 405 W (PoE full load)	52 W (non-PoE) 460 W (PoE full load)
PoE port	All RJ45 ports support PoE/PoE+ (IEEE802.3af/at) power supply	All RJ45 ports support PoE/PoE+ (IEEE802.3af/at) power supply	All RJ45 ports support PoE/PoE+ (IEEE802.3af/at) power supply
PoE power cable pairs	Mode A (1-2, 3-6 pairs)	Mode A (1-2, 3-6 pairs)	Mode A (1-2, 3-6 pairs)
PoE output power	Each PoE port provides up to 30 W of power The maximum power is 370 W	Each PoE port provides up to 30 W of power The maximum power is 370 W	Each PoE port provides up to 30 W of power The maximum power is 405 W
Energy saving	Supported	Supported	Supported

Note: The maximum number of powered devices supported by the switch is determined by the available power of the switch and the actual power consumption of each device.

Environment and Reliability	RG-CS83-24GT4XS	RG-CS83-48GT4XS	RG-CS83-12GT4XS-P	RG-CS83-24GT4XS-P	RG-CS83-48GT4XS-P
Temperature	Operating temperature: 0°C to 45°C (32°F to 113°F) Storage temperature: –40°C to +70°C (–40°F to +158°F)
Humidity	Operating humidity: 10% to 90% RH (non-condensing) Storage humidity: 5% to 95% RH (non-condensing)
Altitude	Operating altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.) Storage altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.)
Mean time between failure (MTBF)	207,962 hours (about 23 years)	208,926 hours (about 23 years)	211,466 hours (about 24 years)	209,714 hours (about 23 years)	200,253 hours (about 22 years)
Fan	No fan	1 x fixed fan module	1 x fixed fan module	1 x fixed fan module	1 x fixed fan module
Heat dissipation	Fanless design, natural heat dissipation	Front-to-right and left-to-right airflow
Acoustic noise	Fanless, quiet, < 20 dB	27? (80.6°F): 32 dB	27? (80.6°F): 35 dB	27? (80.6°F): 32 dB	27? (80.6°F): 35 dB
Cable hot swapping	Cable hot swapping for all ports
Fan monitoring	Fanless design	PID-based multi-level speed adjustment Fan speed control (manual configuration not supported) Fan failure alarming	PID-based multi-level speed adjustment Fan speed control (manual configuration not supported) Fan failure alarming	PID-based multi-level speed adjustment Fan speed control (manual configuration not supported) Fan failure alarming	PID-based multi-level speed adjustment Fan speed control (manual configuration not supported) Fan failure alarming
Temperature monitoring	Supported	Supported	Supported	Supported	Supported
ESD	ESD contact/air discharge: 6 kV/8 kV ESD susceptibility contact/air discharge: 8 kV/15 kV
Surge protection	Power port: common mode 6 kV, differential mode 6 kV Communication port: 10 kV	Power port: common mode 6 kV, differential mode 6 kV Communication port: 10 kV	Power port: common mode 6 kV, differential mode 8 kV Communication port: 10 kV	Power port: common mode 6 kV, differential mode 8 kV Communication port: 10 kV	Power port: common mode 6 kV, differential mode 8 kV Communication port: 10 kV
Conformal coating	Conformal coating supported (key components only)

Certifications and Regulatory Compliance	RG-CS83 Series
Safety regulation	IEC 62368-1
EMC regulation	EN 300386, EN 55032 Class A, EN 55035, EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11
Communication standard	IEEE 802.3-2005 Ethernet standard IEEE 803.ab, IEEE 802.3af, IEEE 802.1d, IEEE 802.1q, IEEE 802.3-2005 (802.3ae), and IEEE 802.3ba (2010) standards, supporting 802.1X authentication
RoHS	Supported

Software Specifications

RG-CS83 Series
Feature	Description
Ethernet switching	Jumbo frame (maximum length: 9,216 bytes)
	802.3az EEE
	IEEE 802.1Q (4K VLANs)
	Voice VLAN
	Super-VLAN and private VLAN
	MAC address-based VLAN, interface-based VLAN, protocol-based VLAN, and IP subnet-based VLAN
	GVRP
	Basic QinQ Selective QinQ
	STP, RSTP, and MSTP
	ERPS (G.8032)
	LLDP/LLDP-MED
IP service	ARP
	DHCP client, DHCP relay, and DHCP server
	DHCP snooping
	DNS
	DHCPv6 client, DHCPv6 relay, and DHCPv6 server
	DHCPv6 snooping
	Neighbor Discovery (ND) and ND snooping
IP routing	Static routing
	RIP and RIPng
	OSPFv2 and OSPFv3
	IPv4 and IPv6 VRF
	IPv4 and IPv6 PBR
Multicast	IGMP v1/v2/v3, and IGMP proxy
	IGMP v1/v2 snooping
	PIM-DM, PIM-SM, and PIM-SSM
	MSDP
	MLD v1/v2
	MLD snooping v1/v2
	PIM-SMv6 and PIM-SSM v6
ACL and QoS	Standard IP ACLs Extended IP ACLs Extended MAC ACLs Time-based ACLs Expert-level ACLs ACL80 IPv6 ACL
	ACL redirection
	Traffic rate limiting on an interface
	Congestion management: RR, SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ
	Congestion avoidance: tail drop
	802.1p/DSCP/ToS traffic classification Eight priority queues per interface
Security	Multiple AAA modes
	RADIUS and TACAS+
	Interface-based and MAC address-based 802.1x authentication
	Web authentication
	HTTPS
	SSHv1 and SSHv2
	Global IP-MAC binding
	Port isolation and port security
	IP source guard
	SAVI
	CPP and NFPP
Reliability	REUP, RLDP, DLDP
	IPv4 VRRP v2/v3 and IPv6 VRRP
	BFD
	Link tracing, fault notification, and remote loopback based on 802.3ah (EFM)
	Dual-Boot Redundancy
	Fan speed adjustment Fan fault alarm
Device virtualization	Virtual Switching Unit (VSU)
NMS and maintenance	SPAN, RSPAN
	sFlow
	NTP and SNTP
	FTP and TFTP
	SNMP v1/v2/v3
	RMON (1, 2, 3, 9)
	NETCONF
	CWMP (TR-069)
	gRPC
	Cloud and SON
PoE	RG-CS83-12GT4XS-P, RG-CS83-24GT4XS-P, and RG-CS83-48GT4XS-P: IEEE 802.3af and 802.3at Warm start Interface priority

Kıyaslama Listene Ekle

Teknik Özellikler
Marka	Ruijie Reyee
Port Sayısı	48 port (10/100/1000 )
Yönetim Şekli	Layer3 Yönetilebilir
Poe Özelliği	PoE Var
Sfp Port	4 Port 10Gb (Sfp)

Diğer Özellikler
Stok Kodu	SVK-RG-CS83-48GT4XS-P
Marka	Ruijie
Stok Durumu	Var
Garanti (Yıl)	3
